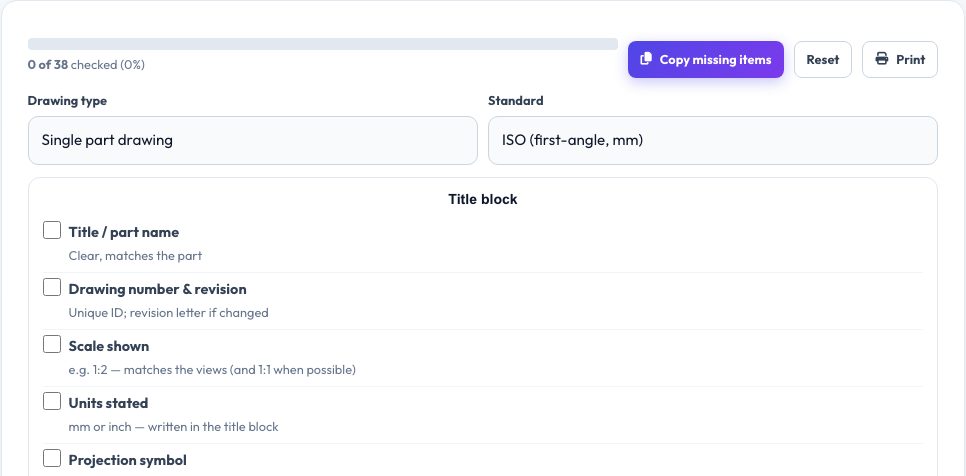

See Engineering Drawing Checklist — Title Block, Views, Dimensions in action

azrscorp.com/quickfix/engineering-drawing-assignment-checker/

1Choose part or assembly drawing and standard.

2Work through each section ticking items.

3Copy the missing items list.

Engineering Drawing Checklist for Students

Most marks lost on CAD drawing assignments are the same few omissions: no scale in the title block, a missing overall dimension, hole callouts without a count or depth, a section view without its cut line label, dimensions chained instead of referenced to a datum, a general tolerance note that never got added. This checklist walks through every area of a drawing — title block, views, dimensions, notes and annotations, line quality and layout — and, for assembly drawings, balloons, parts list and key dimensions — with a one-line explanation of what 'good' looks like for each item.

Tick items off as you go and a progress bar shows how complete the drawing is. Choose a single-part or assembly drawing and the ISO or ASME convention. Your progress is saved in your browser, you can copy only the items still missing as a to-do list, and print the page for a final check. It works for Onshape, SolidWorks, Fusion, AutoCAD or hand drawings.

Key features

How to use it

1. Choose part or assembly drawing and standard.
2. Work through each section ticking items.
3. Copy the missing items list.
4. Fix them, then print the checklist for a last look.

Worked example

Example

Before submitting, you tick 31 of 37 items and the copy button gives a to-do list: 'Scale shown', 'Section cut line labelled', 'Hole callouts', 'General tolerance', 'Break edges note', 'Detail view scale'.

Who uses this tool

Tips for the best results

• Check at the final print size so nothing is too small to read.
• Dimension each feature once, from datums.
• Use a section view instead of dashed lines for internal features.
• State units and tolerance in the title block.

Common mistakes to avoid

• Leaving the scale or units off.
• Chain-dimensioning long strings so errors accumulate.
• Forgetting hole counts and depths in callouts.
