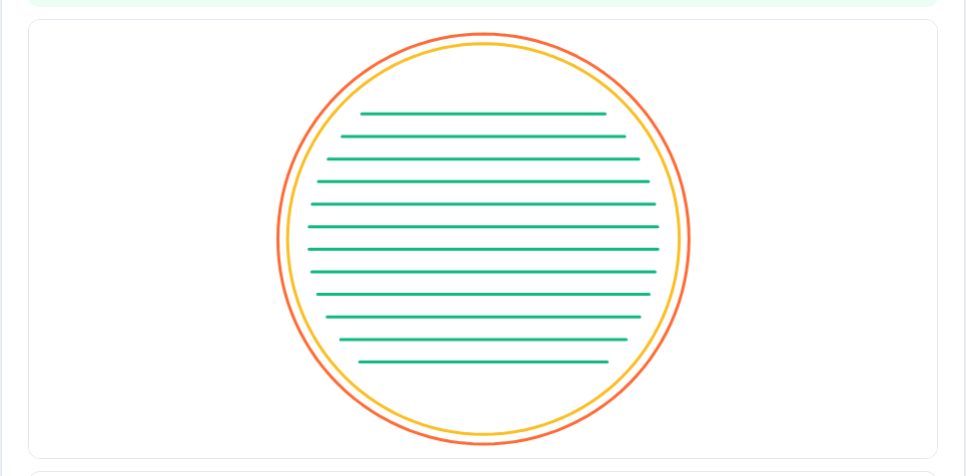

See G-code to SVG / PNG / DXF Toolpath Converter in action
Free G-code to SVG / PNG / DXF Converter
A G-code file is hard to share or document; an image of the toolpath is easy. This converter parses your FDM G-code (including arcs and every layer) and renders any range of layers to SVG, PNG or DXF. SVG output is true-scale millimetres, with paths grouped per layer and coloured by feature type (outer wall, inner wall, infill, support…) or by speed; PNG output lets you pick the resolution in pixels per millimetre and a transparent, white or dark background.
You can export a single layer (to import into Inkscape, a laser cutter or a CAD sketch), a flattened range of layers, a ZIP containing one SVG per layer for documentation, or a DXF with each G-code layer on its own DXF layer. Everything is computed in your browser.
Key features
True-scale SVG
Millimetre units at 1:1; paths grouped per layer with Z recorded.
PNG at any resolution
From a quick 5 px/mm preview to a 60 px/mm print.
Layer ZIP & DXF
One SVG per layer, or a DXF with a DXF layer per print layer.
Colour modes
By feature, by speed or single colour; optional travel moves.
How to use it
- Drop in your .gcode file.
- Pick the first and last layer.
- Choose colours, line width and background.
- Download SVG, PNG, a ZIP of layers or DXF.
Worked example
Example
Layer 1 of a bracket (first-layer outline and infill) exported as a black-on-white SVG, imported into a laser cutter as a cutting reference at true size.
Who uses this tool
Makers documenting prints
Share toolpath images in forums and build logs.
Educators
Illustrate how slicers build layers.
Laser/CNC hobbyists
Reuse a printed layer outline as a cut path.
Tips for the best results
- Use 'Single colour' with a white background for clean documentation figures.
- Larger PNG resolutions take more memory; 10–20 px/mm is plenty.
- Include travel moves only when explaining retraction or stringing.
- The DXF contains lines — heal or join them in your CAD/laser software if you need closed outlines.
Common mistakes to avoid
- Exporting a thousand layers flattened into one image — it will be a black blob.
- Expecting arcs as arcs — they are exported as short line segments.
- Forgetting that G-code Y runs up the bed; the SVG is flipped to match.
Why use AZRS QuickFix?
It is 100% free, needs no signup and has no watermark or usage limits. The tool runs in your browser, so what you type stays on your device, and it works on phones, tablets and desktops. New tools are added every week — bookmark this page or browse the full QuickFix toolbox.
Frequently asked questions
Are SVG units millimetres?
Yes — width/height are in mm and the viewBox is 1 unit per mm.
Does it support Cura, Prusa, Orca and Bambu G-code?
Yes, anything with standard G0/G1/G2/G3 moves.
Can I get a 3D image?
Use the G-code Viewer and its screenshot button.
Is my file uploaded?
No.
